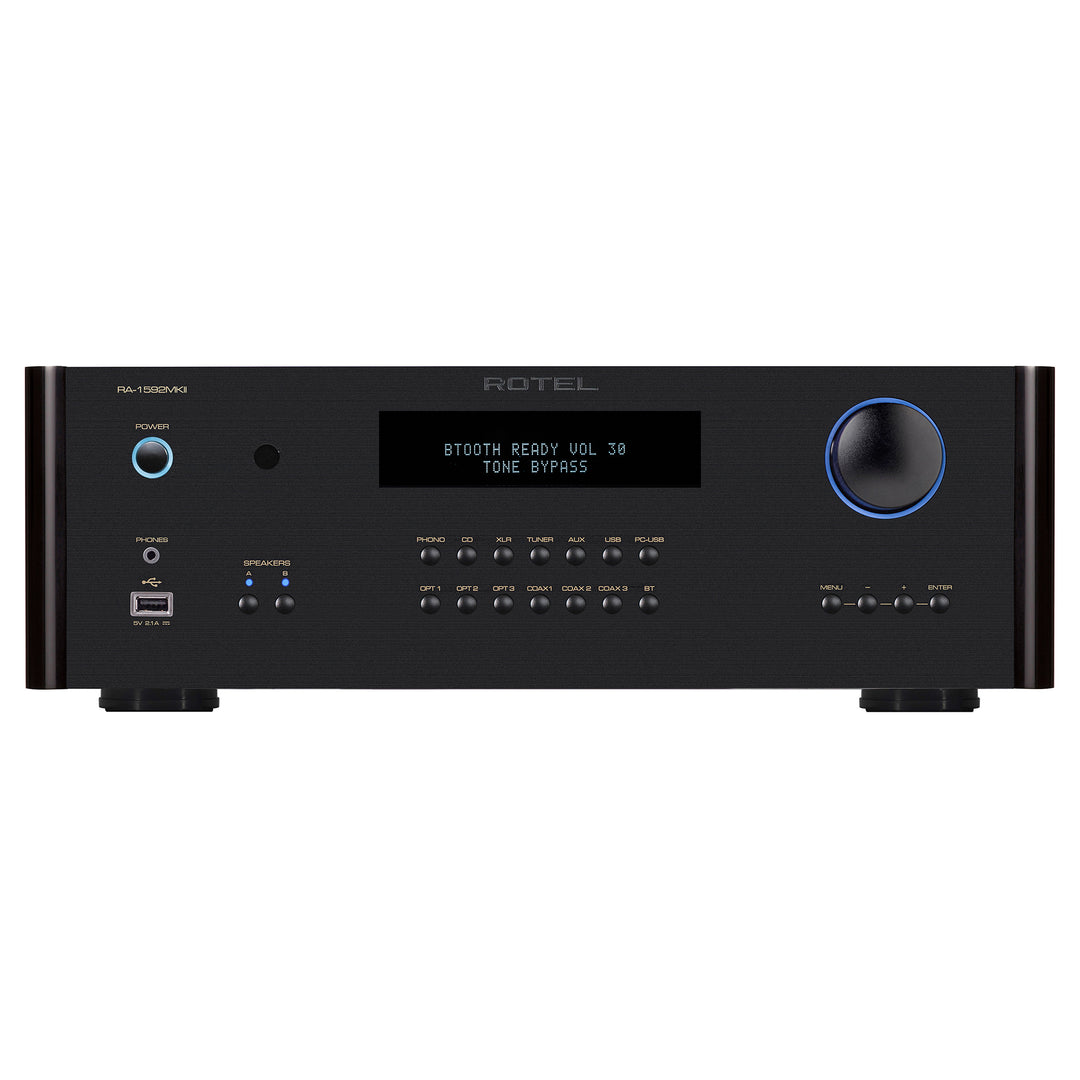

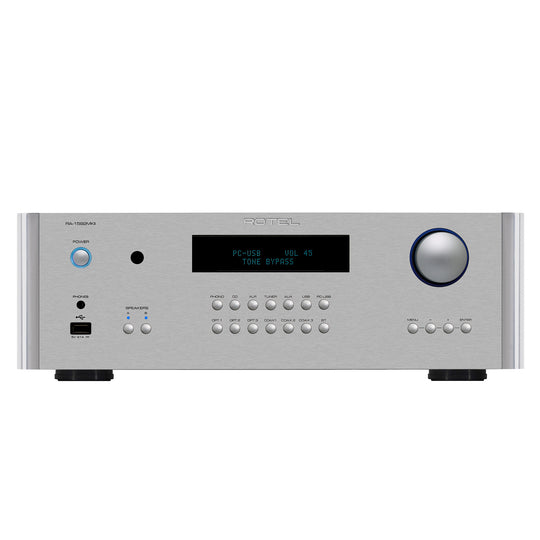

Rotel RA-1592MKII Stereo Integrated Amplifier
- Todds approved
- FREE SHIPPING
Features:
- 2 x 350 Watts of robust Class AB power, 4 Ohms
- Moving Magnet Phono input for turntable connection
- Wireless aptX™ and AAC Bluetooth
- Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
- Balanced XLR inputs
- Supports MQA and MQA Studio
- Certified Roon Tested
Whether a seasoned audiophile or casual listener, the time has never been better to be a music lover. A near limitless supply of music is at our fingertips accessible via streaming, digital mediums, classic vinyl and more.
Rotel has been designing and manufacturing high fidelity, high quality, high performance audio products for over 60 years accurately rendering audio with exceptional detail and stunning clarity. The RA-1592MKII proudly continues in the tradition and heritage of this iconic brand.

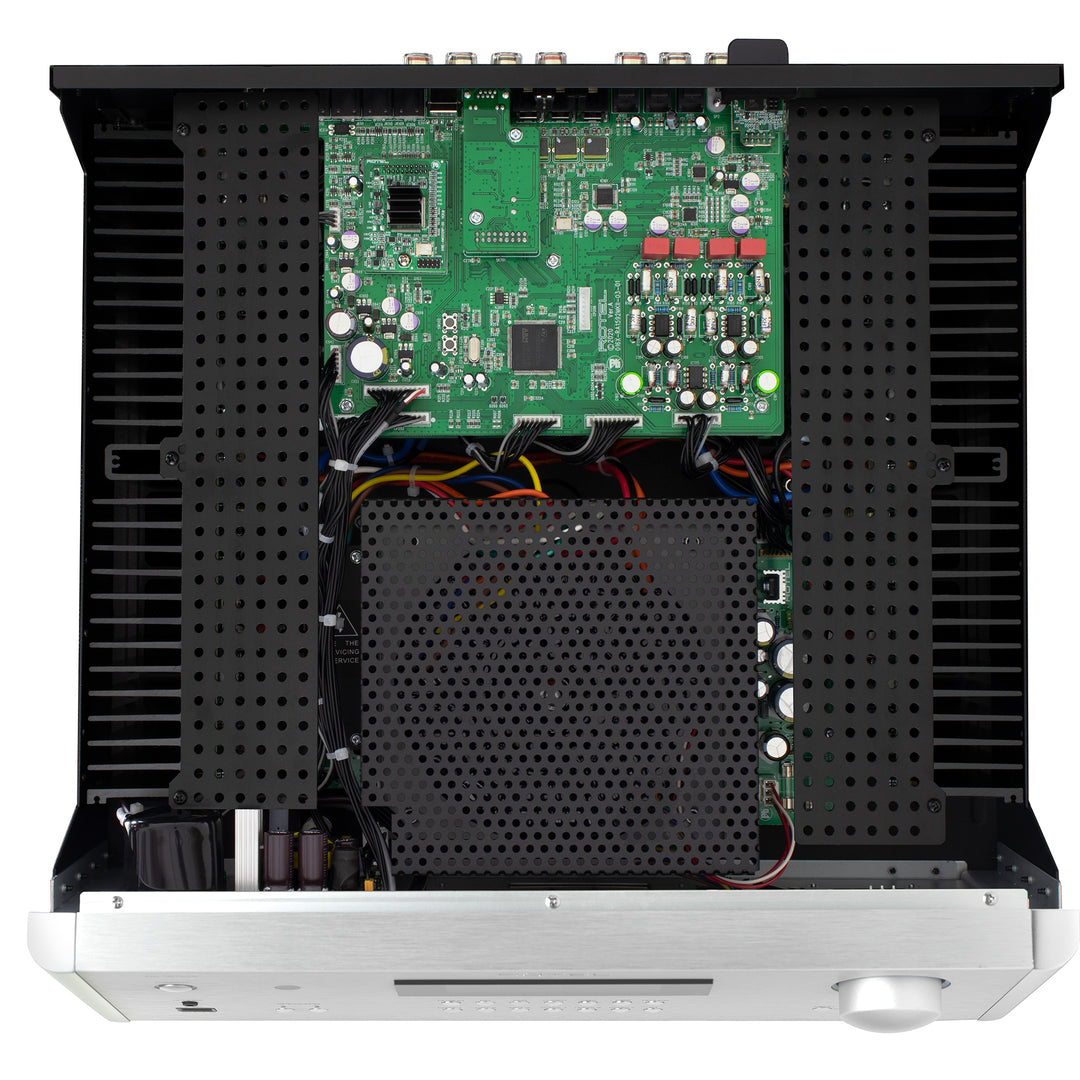

The RA-1592MKII Integrated Amplifier includes circuit design innovations, optimization of audio signal paths and updates to critical power supply components delivering a breathtaking performance with dynamic rhythm and timing.
Utilizing Rotel’s best-in-class preamplifier topology and award-winning power amplifier technology, the RA-1592MKII is a no-compromise, size-efficient, all-in-one integrated audio product. The RA-1592MKII delivers 200 Watts per channel into 8 ohms powered by Rotel’s in-house manufactured toroidal transformer feeding an array of slit-foil capacitors for rich, deep, controlled, bass energy.
The RA-1592MKII supports your favorite sources including Analog, XLR, Digital, aptX™ and AAC wireless Bluetooth, PC-USB supporting MQA and 32-bit/384kHz PCM, and Moving Magnet Phono stage. Digital to Analog conversion utilizes a Texas Instruments premium DAC with precisely tuned output filter circuits delivering unprecedented acoustic detail, wide sound stage and exacting positioning.
The RA-1592KII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.

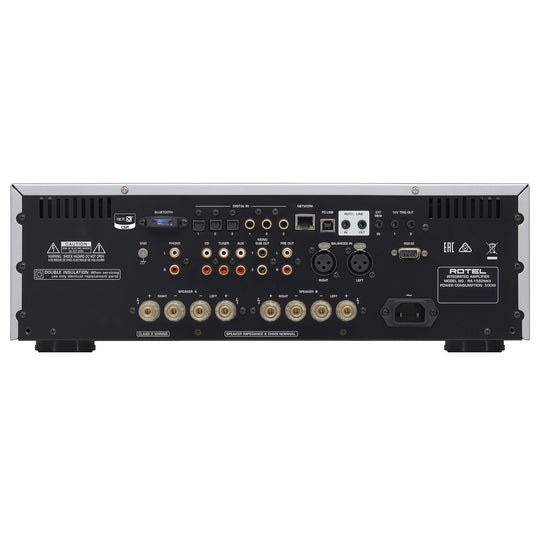

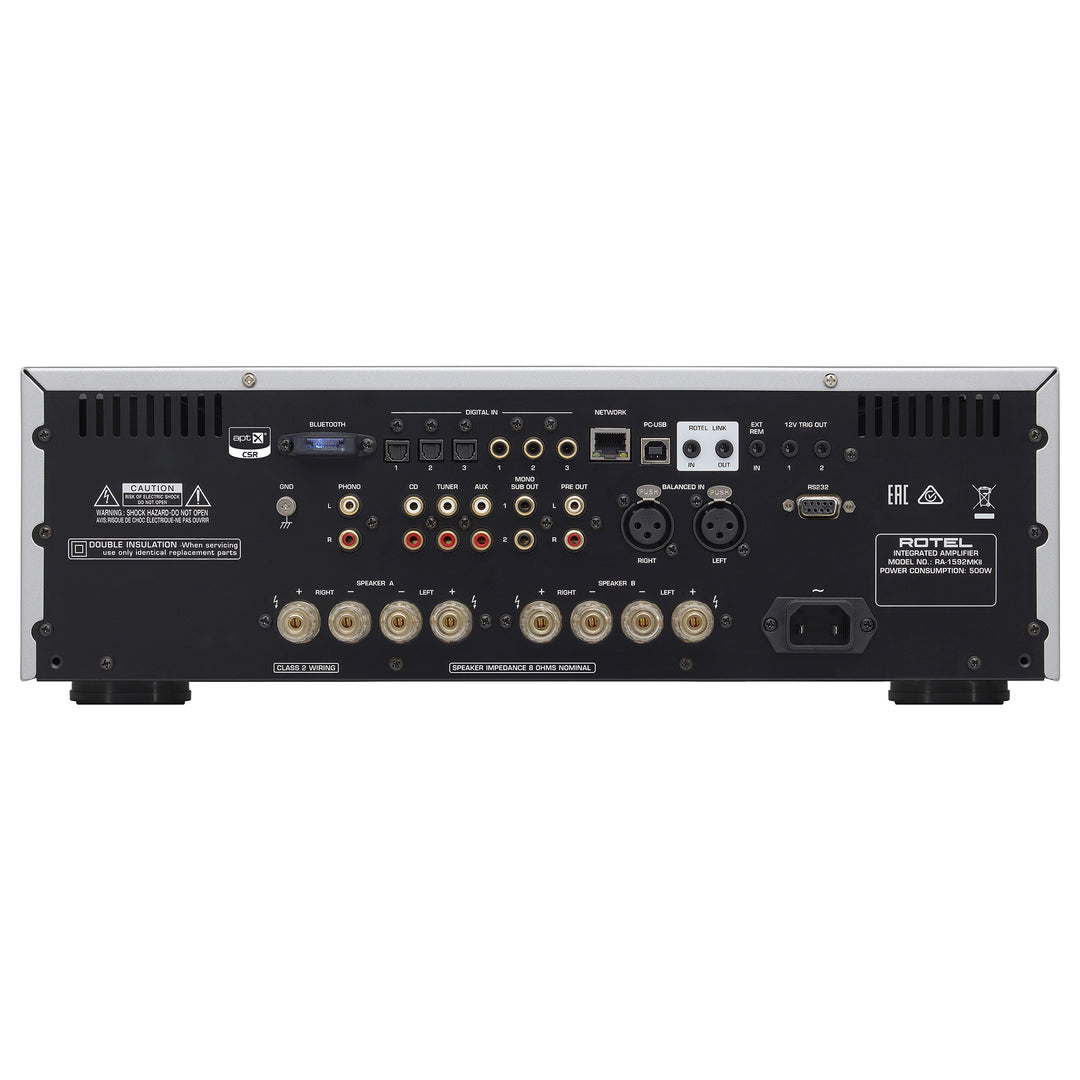

Selectable A-B speaker outputs, RS232, Ethernet and 12V triggers ensure seamless integration with control systems.
Convenience, performance and value - the RA-1592MKII delivers.
SPECIFICATIONS |
|
| Maximum Power Output | 350 watts/ch (4 ohms) |
| Continuous Power Output | 200 watts/ch (8 ohms) |
| Total Harmonic Distortion | < 0.008% |
|
Intermodulation Distortion (60 Hz : 7k Hz, 4:1) |
< 0.03% |
| Frequency Response | |
| Phono Input | 20 Hz - 20k Hz (0 ± 0.5 dB) |
| Line Level Inputs | 10 Hz - 100k Hz (0 ± 0.5 dB) |
|
Damping Factor (20 Hz - 20k Hz, 8 ohms) |
600 |
| Input Sensitivity / Impedance | |
| Phono Input (MM) | 5.2 mV / 47k ohms |
| Line Level Inputs (RCA) | 340 mV / 100k ohms |
| Line Level Inputs (XLR) | 540 mV / 100k ohms |
| Input Overload | |
| Phono Input (MM) | 52 mV |
| Line Level Inputs (RCA) | 3.5 V |
| Line Level Inputs (XLR) | 5.5 V |
| Preamplifier Output / Impedance | 1.9 V / 100 ohms |
|
Signal to Noise Ratio (IHF A-weighted) |
|
| Phono Input (MM) | 80 dB |
| Line Level Inputs | 103 dB |
| Digital Section | |
| Frequency Response | 10 Hz - 90k Hz (0 ± 2 dB, Max) |
|
Signal to Noise Ratio (IHF A-weighted) |
102 dB |
| Input Sensitivity / Impedance | 0 dBfs / 75 ohms |
| Preamplifier Output Level | 1.43 V (at -20 dB) |
| Coaxial / Optical Digital Signals | SPDIF LPCM (up to 24-bit / 192k Hz ) |
| PC-USB | USB Audio Class 1.0 (up to 24-bit / 96k Hz ) |
| USB Audio Class 2.0 (up to 32-bit / 384k Hz ) * *Driver installation required |
|
| MQA and MQA Studio (up to 24-bit / 384k Hz ) |
|
| Power Requirements | |
| Europe | 230 V, 50 Hz |
| USA | 120 V, 60 Hz |
| Power Consumption | 500 watts |
| Standby Power Consumption | |
| Normal | < 0.5 watts |
| Network Wakeup | < 2 watts |
| BTU (4 ohms, 1/8th power) | 1239 BTU/h |
| Dimensions (W x H x D) | 431 x 144 x 425 mm 17 x 5 7/8 x 16 in |
| Front Panel Height | 3U (132.6 mm, 5 1/4 in) |
| Weight (net) | 17.63 kg, 38.87 lbs. |
| Finish | Silver and Black |
