See nothing, hear everything

Designed for wall-mounted left, centre and right speaker positions in a discreet home cinema system, CWM7.4 S2 can also be mounted beside, above or below the screen, ensuring crystal-clear dialogue and dramatic special effects.

Like having a Floor-Standing Speaker hidden in your wall cavity, the CWM7.4 S2 features an integrated backbox that optimises its performance, cuts down on sound transference through walls and also makes it easy to retrofit.

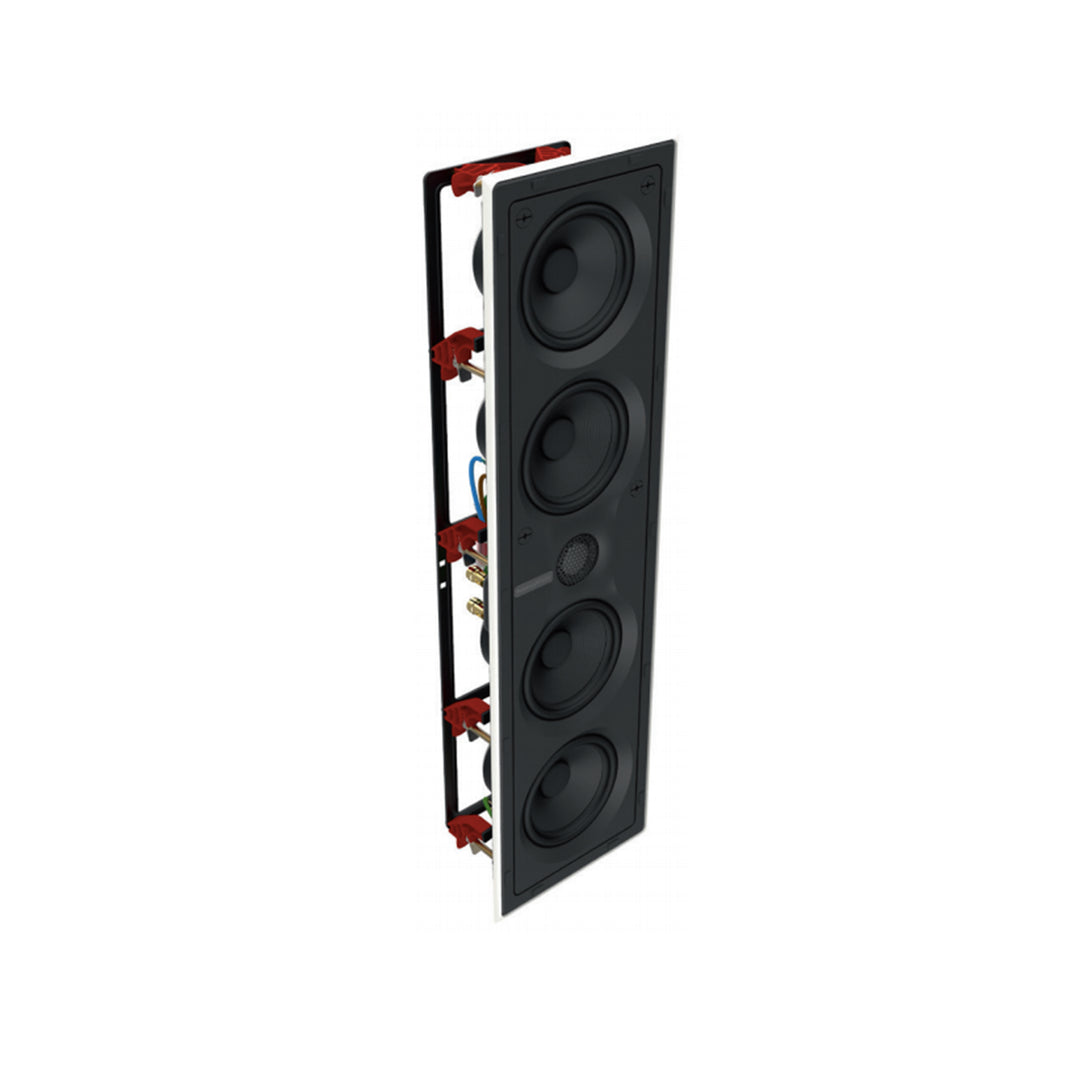

Thanks to Bowers & Wilkins unique QuickDogs™ fixing method, installation is simple, requiring no tools. Its 2.5-way configuration features a single Carbon Dome tweeter, twin 100mm (4in) Continuum cone midrange units and twin 100mm (4in) Aramid Fibre/paper bass cones.

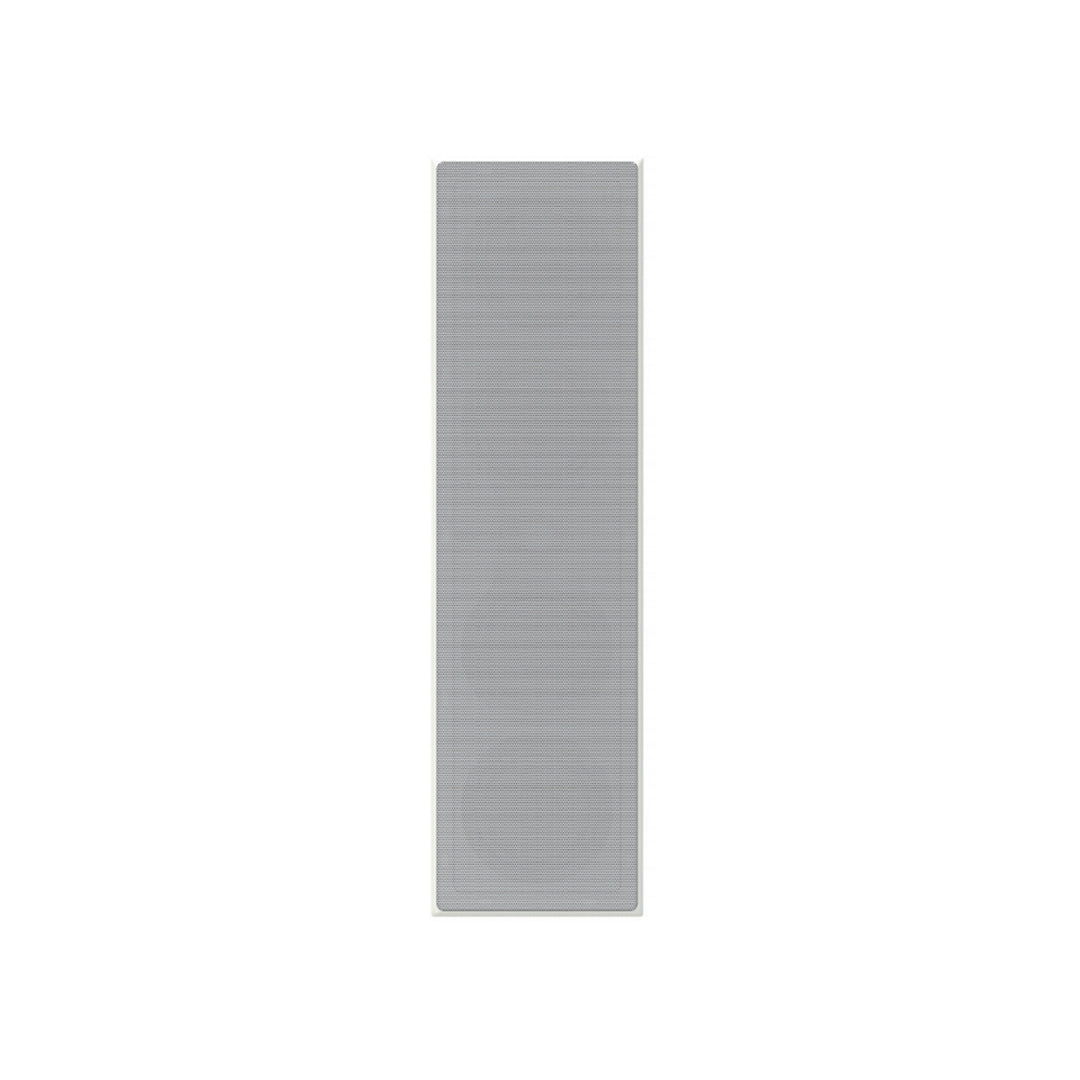

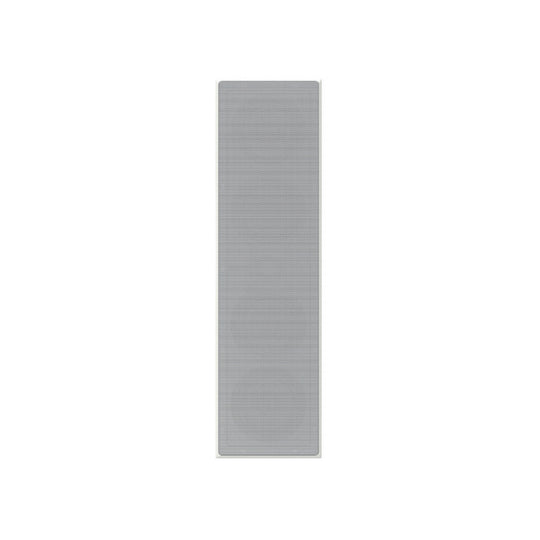

With spray-paintable magnetic grilles, these speakers can easily disappear into any room but still provide amazing, accurate sound just as the artist intended.

Ask the friendly Todds HiFi staff how to best incorporate these into your system today.

Technical Specifications

Technical features

Carbon Dome tweeter Continuum midrange Aramid Fibre/Paper bass cones

Description

2½-way in-wall system

Drive Units

1x ø25mm (1 in) Carbon Dome high-frequency

2x ø100mm (4 in) Continuum cone mid/bass

2x ø100mm (4 in) Aramid Fibre/Paper profile bass

Frequency range (-6dB)

-6dB at 43Hz - 33kHz

Frequency Response -3dB

45Hz - 28kHz ±3dB

Sensitivity

86dB spl (2.83Vrms, 1m)

Harmonic distortion

2nd and 3rd harmonics (90dB, 1m) <1% 80Hz - 33kHz <0.5% 120Hz - 33kHz

Nominal impedance

8Ω (minimum 4.9Ω)

Recommended amplifier power

25W - 150W into 8Ω on unclipped programme

Dimensions

Frame height: 625mm (24.6in)

Frame width: 175mm (6.9in)

Depth: (behind surface) 92.5mm (3.64in)

Cut-out height: 597mm (23.5in)

Cut-out width: 147mm (23.5in)

Protrusion: 8mm (0.3in)

PMK: PMK CWMC7

Net weight: 6.2kg (13.73 lb)

Finishes Grille: White
